Investment Casting Wax Properties

Investment casting, also known as lost-wax casting, relies heavily on the properties of the wax used to create the initial pattern. The ideal wax should possess a combination of characteristics that facilitate ease of processing, dimensional accuracy, and complete removal from the mold. Understanding these properties is crucial for achieving high-quality castings.

Key Properties of Investment Casting Waxes:

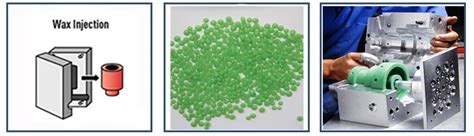

Melting Point and Viscosity: The wax must have a relatively low melting point to allow for easy injection into the mold cavity at reasonable temperatures. A well-defined melting range is also important for consistent processing. The viscosity of the molten wax should be low enough to flow readily into intricate details of the die, capturing fine features and ensuring accurate reproduction of the desired shape. High viscosity can lead to incomplete filling and surface defects.

Shrinkage: All waxes shrink upon cooling from the molten to the solid state. Minimizing shrinkage is crucial for maintaining dimensional accuracy in the final casting. Different wax formulations exhibit varying degrees of shrinkage, and selection should be based on the specific dimensional tolerances required for the casting. Waxes with low shrinkage contribute to improved pattern accuracy and reduce the risk of cracking during cooling.

Strength and Toughness: The wax pattern needs sufficient strength to withstand handling during subsequent investment casting stages, such as dipping into ceramic slurry and stucco application. While not requiring exceptional strength, the wax must be tough enough to resist breakage or deformation during these processes. Conversely, excessive toughness can make wax removal difficult.

Ash Content: One of the most critical properties is the wax’s ash content. Ideally, the wax should burn out completely during the dewaxing process, leaving minimal residue that could contaminate the mold cavity and lead to defects in the final casting. Low ash content waxes are therefore essential for achieving clean and high-quality castings. High ash content can cause surface imperfections, reduced mechanical properties, and even casting failure.

Thermal Expansion Coefficient: The thermal expansion coefficient of the wax must be compatible with the other materials involved in the investment casting process, such as the mold material. Significant differences in thermal expansion can lead to stress build-up and cracking during heating and cooling cycles. Matching thermal expansion coefficients as closely as possible helps to minimize dimensional variations and ensure process stability.

Surface Finish: The wax pattern’s surface finish directly impacts the surface finish of the final casting. A smooth, defect-free wax pattern will result in a smoother casting. Surface imperfections on the wax pattern, such as scratches or porosity, will be replicated in the casting. Careful handling and storage of wax patterns are essential to preserve their surface integrity.

Chemical Stability: The wax should be chemically inert and stable under normal processing conditions. It should not react with the mold material or the environment, which could lead to degradation or contamination. Stability ensures consistent performance and prevents unwanted changes in properties during the investment casting process.

Types of Investment Casting Waxes: Various types of waxes are used in investment casting, including natural waxes (e.g., beeswax, carnauba wax), synthetic waxes (e.g., polyethylene wax, Fischer-Tropsch wax), and blends of these. The specific wax formulation is often tailored to meet the requirements of the particular casting application.
