Investment Plaster for Casting: A Comprehensive Guide

Investment plaster is a specialized material used in the lost-wax casting process, primarily in jewelry making and dental applications. It serves as a mold to hold the delicate wax pattern during the burnout phase, where the wax is eliminated, and the molten metal is eventually poured in. The investment must withstand high temperatures and pressures without cracking or collapsing, accurately reproducing the intricate details of the original wax model.

Composition and Properties

Investment plaster is not simply gypsum plaster like that used for walls. It’s a carefully formulated blend of several components:

• Gypsum (Calcium Sulfate Hemihydrate): The primary binder. Different types of gypsum are used, offering varying setting times and strengths.
• Silica: This is the key ingredient for high-temperature resistance. Silica in forms like cristobalite or quartz expands during heating, compensating for the shrinkage of the gypsum. This controlled expansion is critical for preventing cracks and ensuring accurate casting dimensions. The type and amount of silica influence the investment’s thermal expansion properties.
• Modifiers: These are additives that control the setting time, strength, and fluidity of the investment slurry. Examples include boric acid (retards setting), potassium sulfate (accelerates setting), and wetting agents to improve the flow and air bubble removal.

The ideal investment plaster exhibits these essential properties:

• Fine Particle Size: Enables accurate reproduction of fine details.
• High Strength: Withstands pressure from molten metal.
• Controlled Thermal Expansion: Compensates for metal shrinkage.
• Porosity: Allows gases to escape during casting, preventing porosity in the final metal product.
• Easy Burnout: Leaves minimal residue after the burnout phase.
• Good Flowability: Ensures the investment evenly coats the wax pattern.

The Casting Process with Investment Plaster

The process involves several key steps:

1. Wax Pattern Preparation: A detailed wax model is created, which accurately represents the final metal object.
2. Sprueing: The wax pattern is attached to a sprue, which creates a channel for the molten metal to flow into the mold.

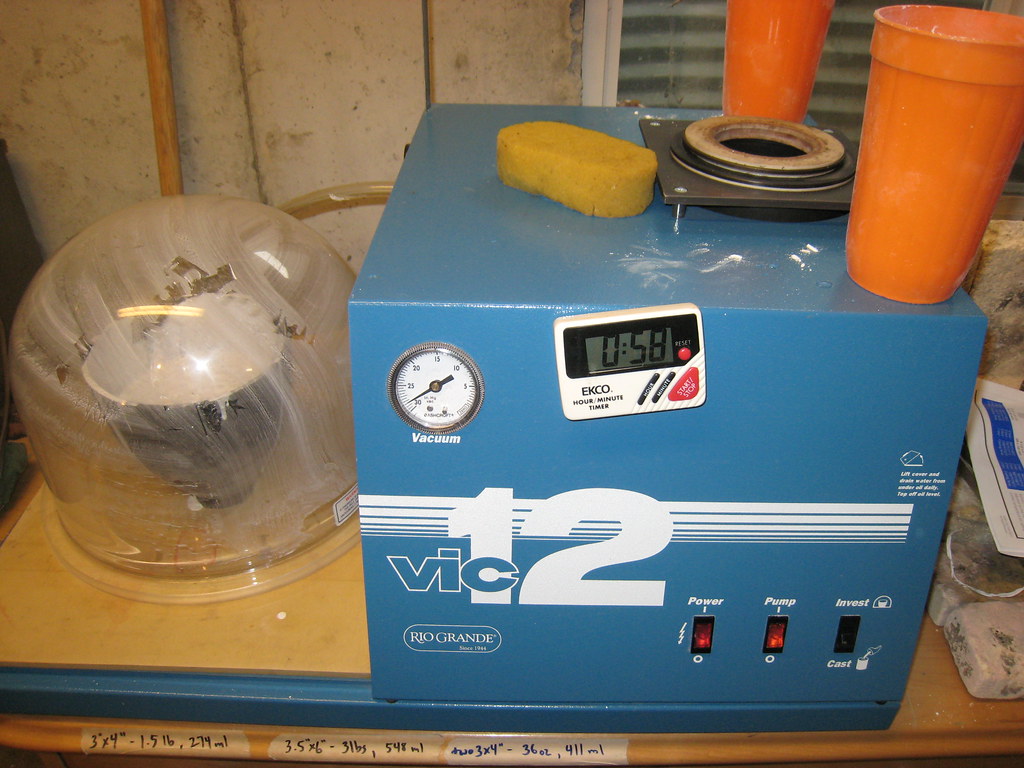

3. Investing: The wax pattern and sprue assembly are placed inside a flask (a cylindrical container). The investment plaster is mixed with water to create a slurry and poured into the flask, completely encasing the wax pattern. Vacuum investing may be used to remove air bubbles.
4. Setting: The investment slurry is allowed to set and harden, creating a solid mold.
5. Burnout: The flask is placed in a burnout oven. The temperature is gradually increased to melt and eliminate the wax pattern, leaving a hollow cavity within the investment mold. This stage also cures the investment, increasing its strength and permeability.
6. Casting: Molten metal is poured or forced into the cavity.
7. Quenching: Once the metal has cooled and solidified, the flask is quenched in water, which helps to break up the investment.
8. Divesting and Finishing: The cast object is removed from the investment, and the sprue is cut off. The final piece is then cleaned, polished, and finished.

Types of Investment Plaster

Different types of investment plasters are available, each formulated for specific metals and casting techniques. Some common types include:

• Gold Investment: Designed for casting gold alloys, typically exhibiting a lower thermal expansion than silver investments.
• Silver Investment: Optimized for casting silver alloys, often with higher expansion to accommodate silver’s greater shrinkage.
• Platinum Investment: Formulated for high-temperature platinum casting, requiring exceptional heat resistance and strength.
• Phosphate-Bonded Investment: Used for casting high-melting-point alloys like palladium and stainless steel. They utilize a different bonding system than gypsum-based investments, offering superior strength and high-temperature stability.

Choosing the correct investment plaster for the metal being cast is crucial for achieving successful and high-quality results.
